Base models

The 27 base models are standard reference configurations used to represent and price Bio.frame models. Each base model is shown at maximum height (190 cm) and with the largest available footprint for its type, providing a consistent basis for comparison across the range. Shelving is arranged primarily at 43 cm vertical spacing, with selected upper shelves set at 28 cm, while all configurations can be adapted through customisation.

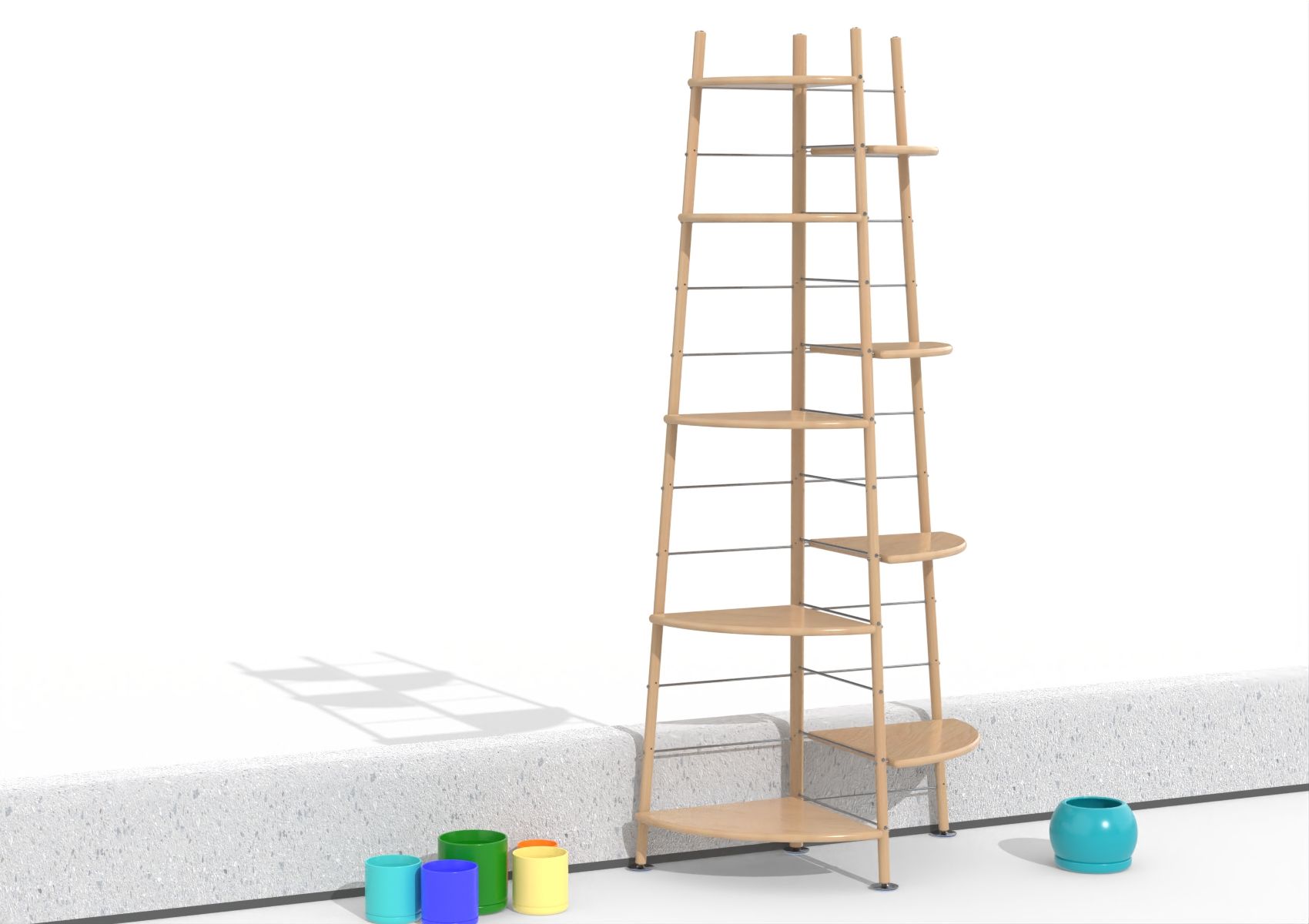

M01.

Model specification: M01.4.15

Height: 190 cm | Foot print: L87 cm x W46 cm

T-section(s): 2 | T-shelves: 9

R-section(s): 0 | R-shelves: 0

Rails: 1 | Legs: 3

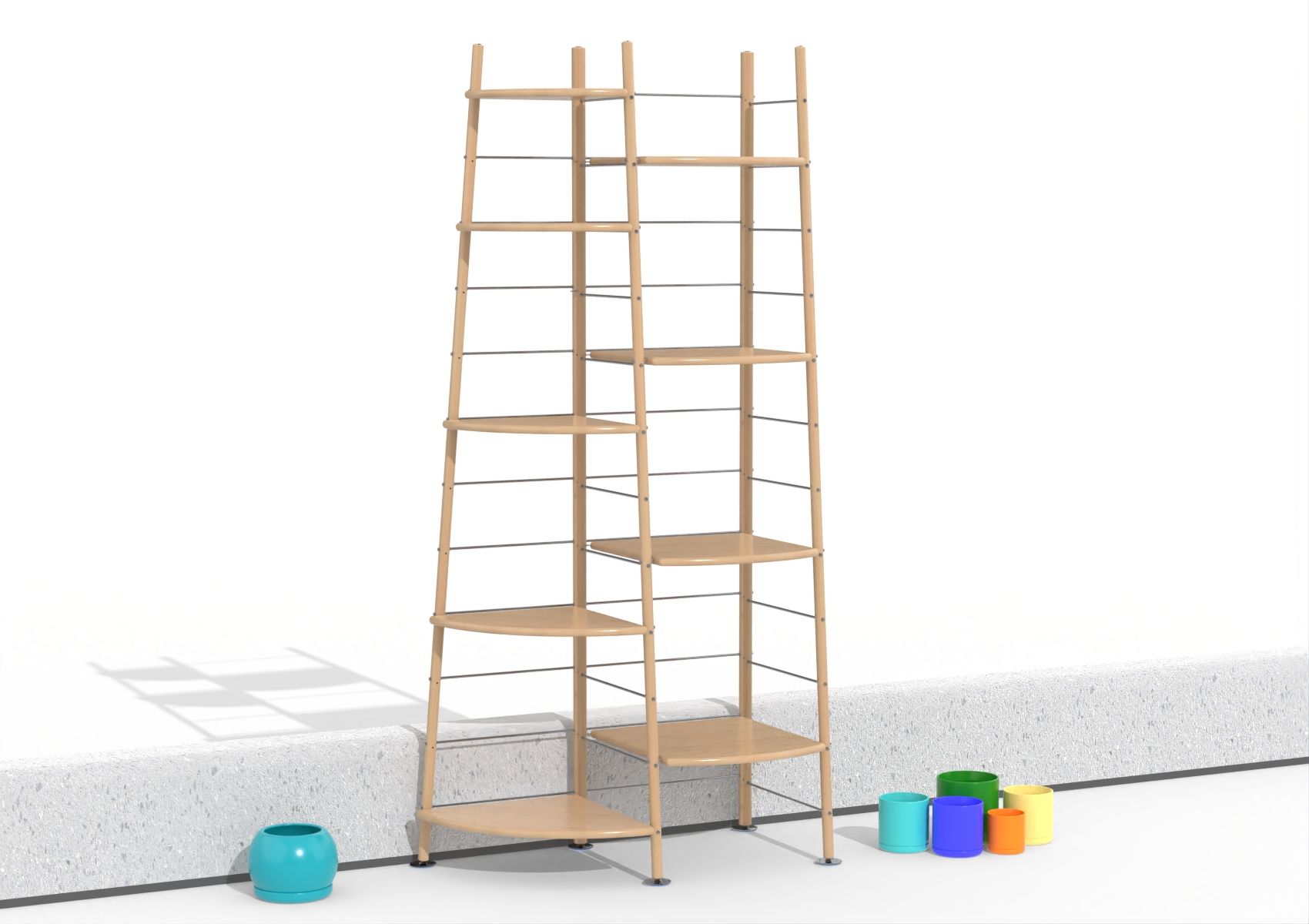

M02.

Model specification: M02.4.15

Height: 190 cm | Foot print: L91 cm x W46 cm

T-section(s): 1 | T-shelves: 5

R-section(s): 1 | R-shelves: 4

Rails: 2 | Legs: 3

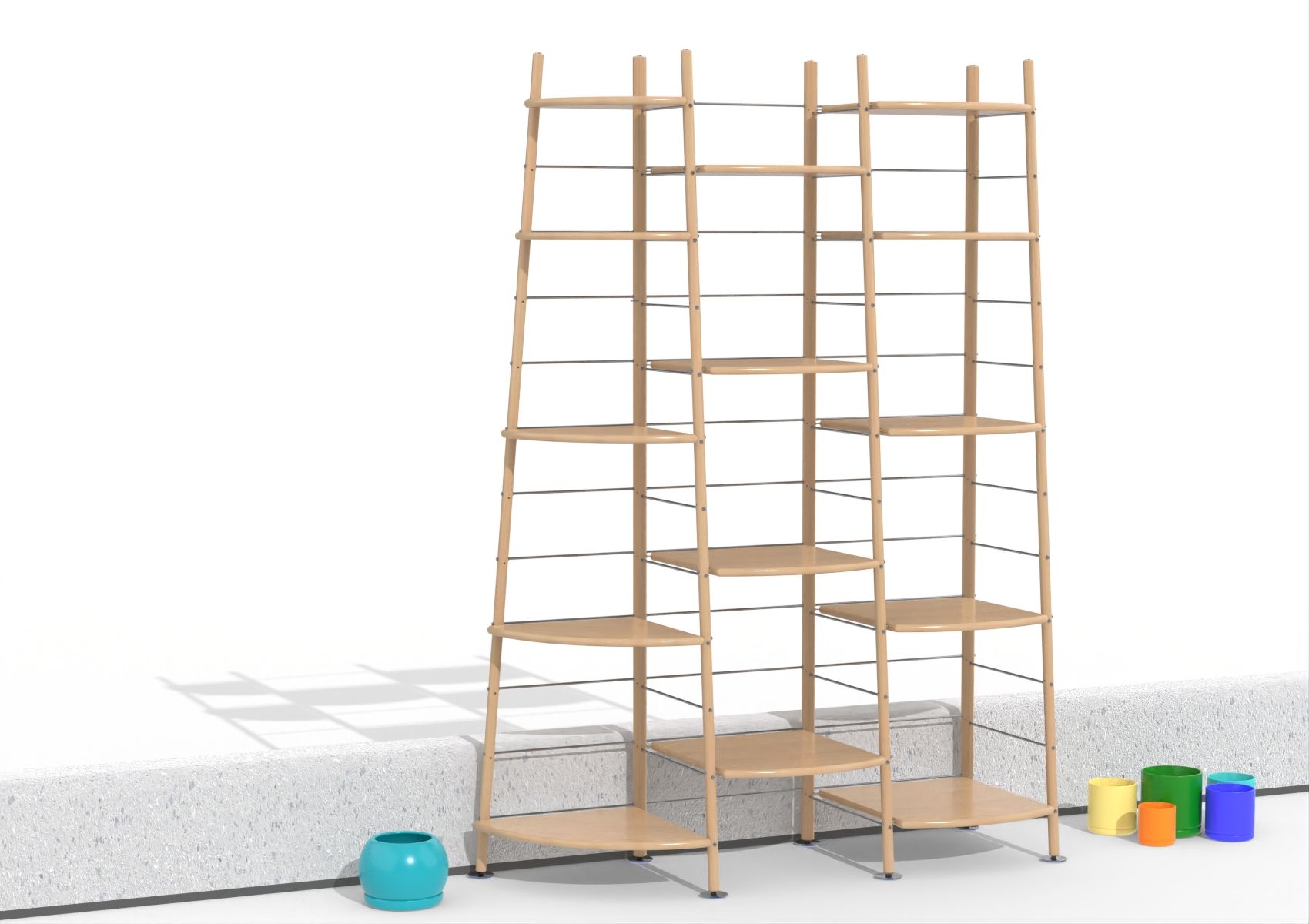

M03.

Model specification: M03.4.15

Height: 190 cm | Foot print: L136 cm x W46 cm

T-section(s): 1 | T-shelves: 5

R-section(s): 2 | R-shelves: 9

Rails: 3 | Legs: 4

M04.

Model specification: M04.4.15

Height: 190 cm | Foot print: L132 cm x W46 cm

T-section(s): 2 | T-shelves: 10

R-section(s): 1 | R-shelves: 4

Rails: 2 | Legs: 4

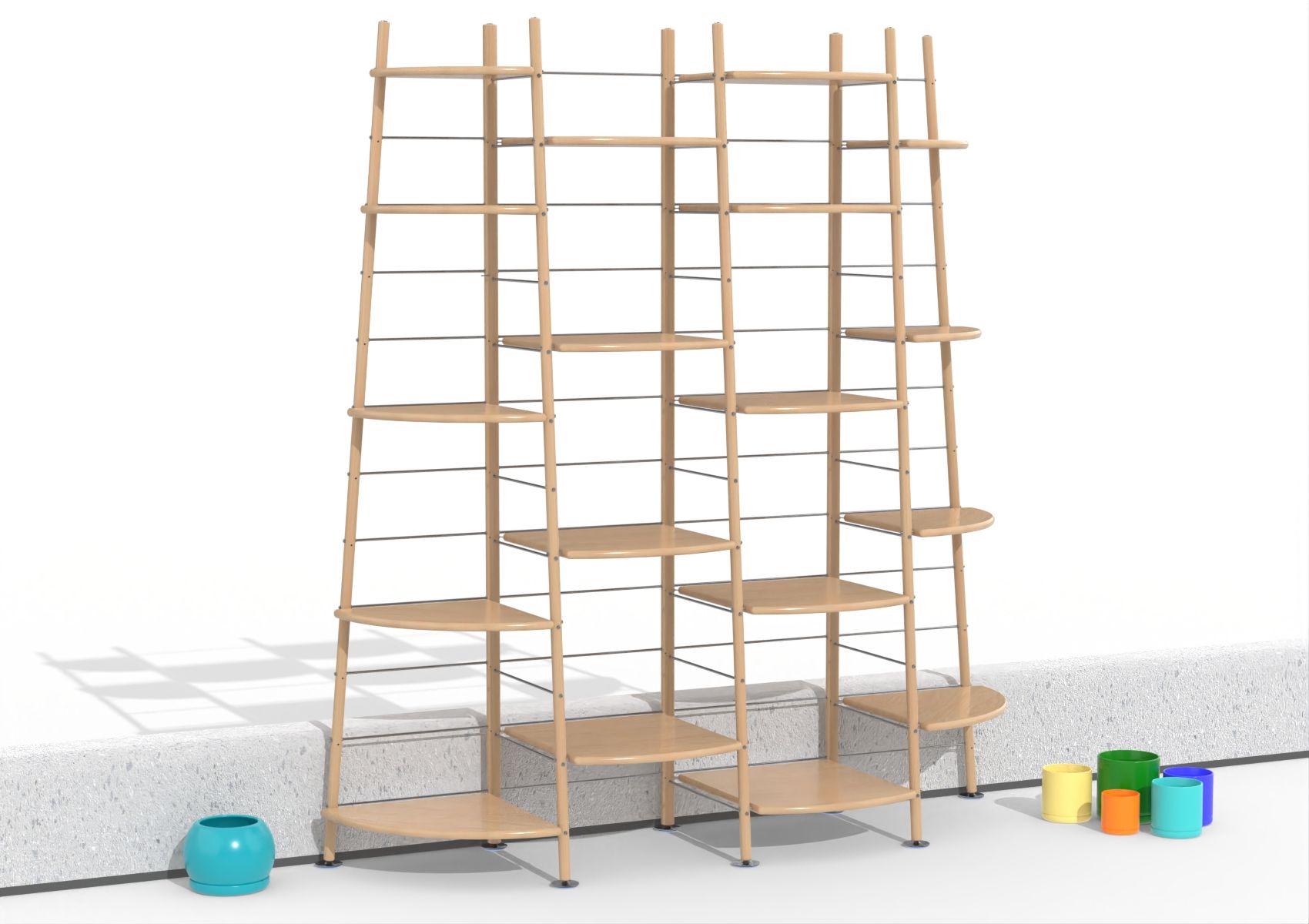

M05.

Model specification: M05.4.15

Height: 190 cm | Foot print: L177 cm x W46 cm

T-section(s): 2 | T-shelves: 10

R-section(s): 2 | R-shelves: 9

Rails: 3 | Legs: 5

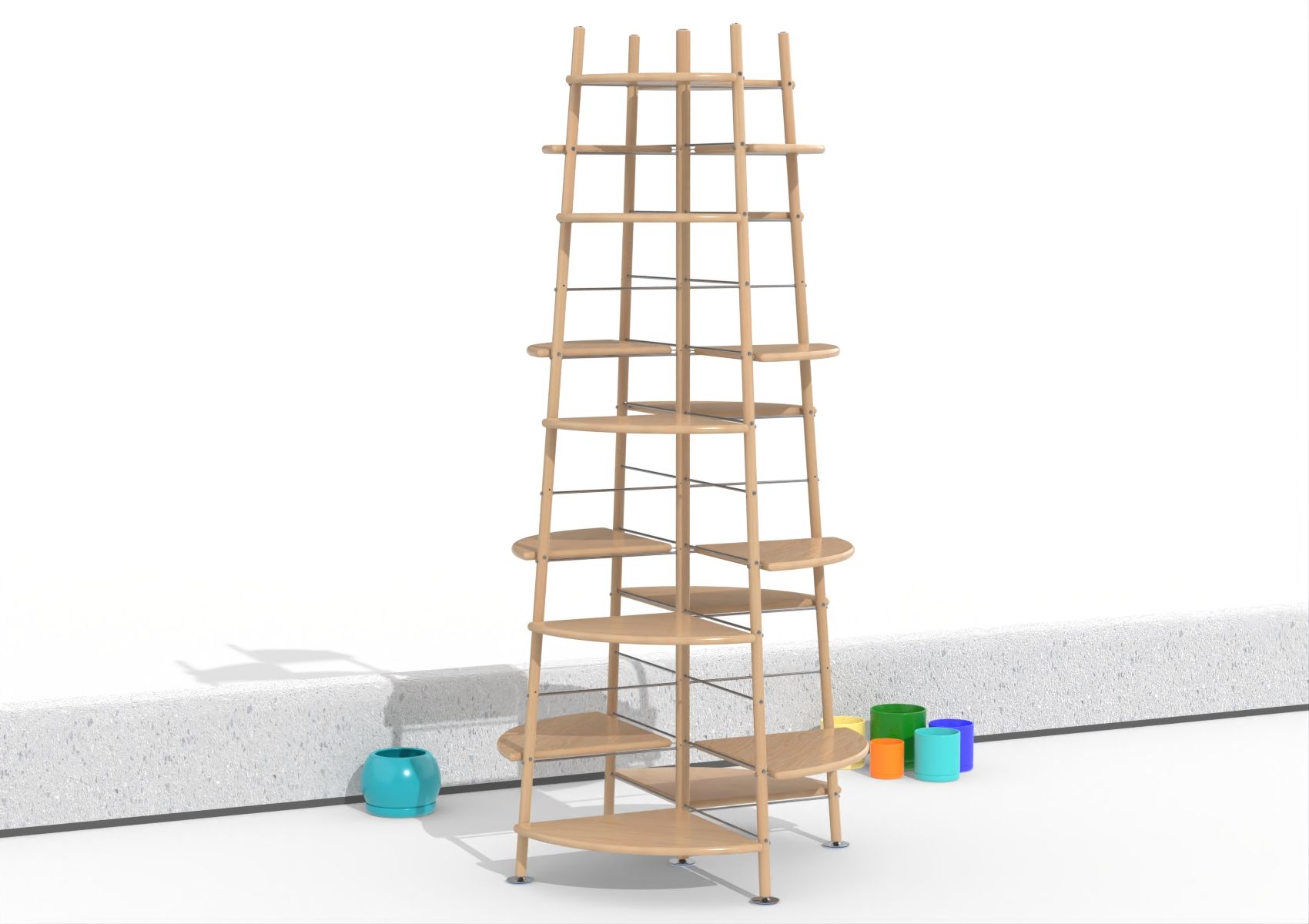

M06.

Model specification: M06.4.15

Height: 190 cm | Foot print: L87 cm x W87 cm

T-section(s): 4 | T-shelves: 18

R-section(s): 0 | R-shelves: 0

Rails: 1 | Legs: 4

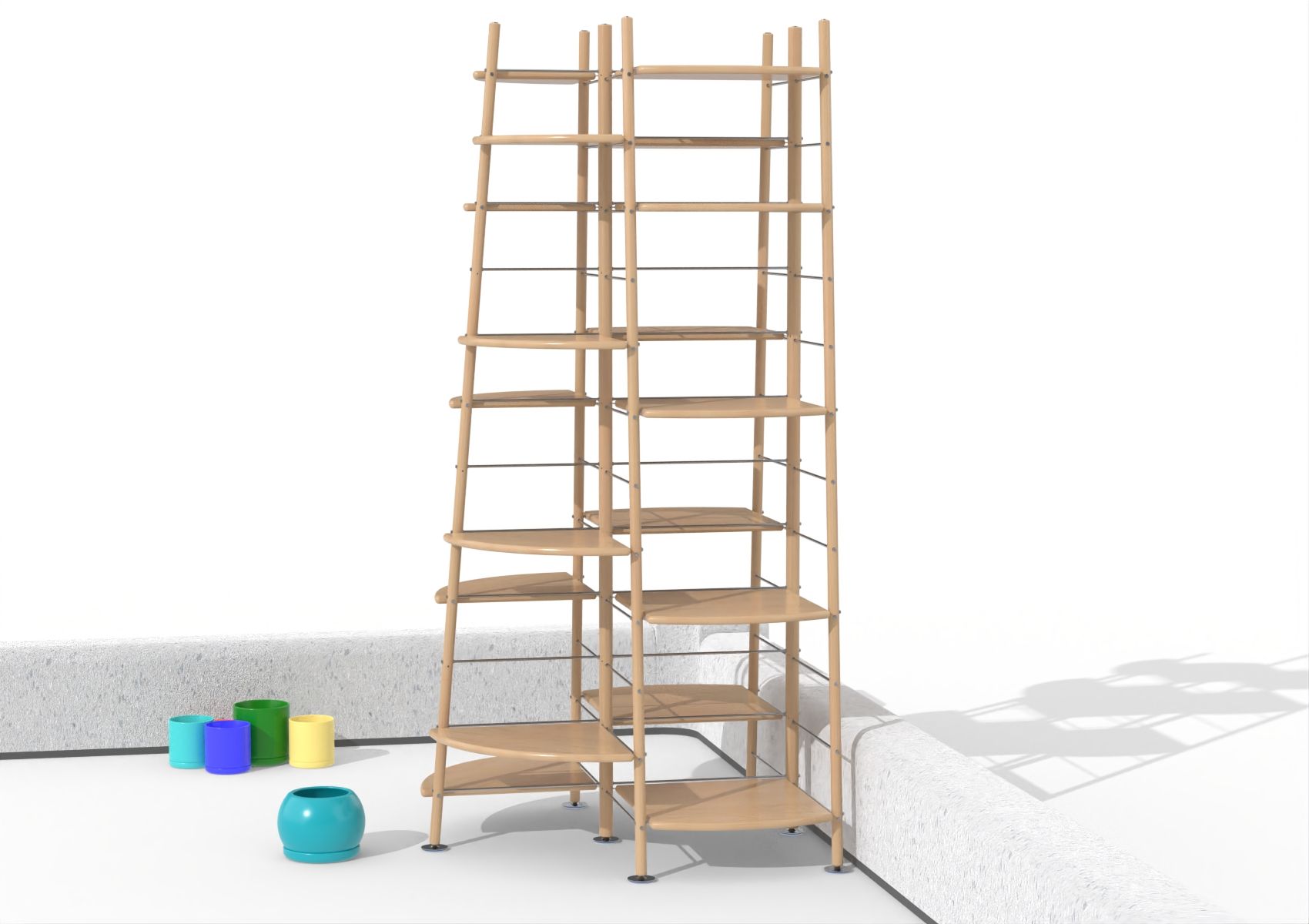

M07.

Model specification: M07.4.15

Height: 190 cm | Foot print: L91 cm x W87 cm

T-section(s): 2 | T-shelves: 9

R-section(s): 2 | R-shelves: 9

Rails: 2 | Legs: 5

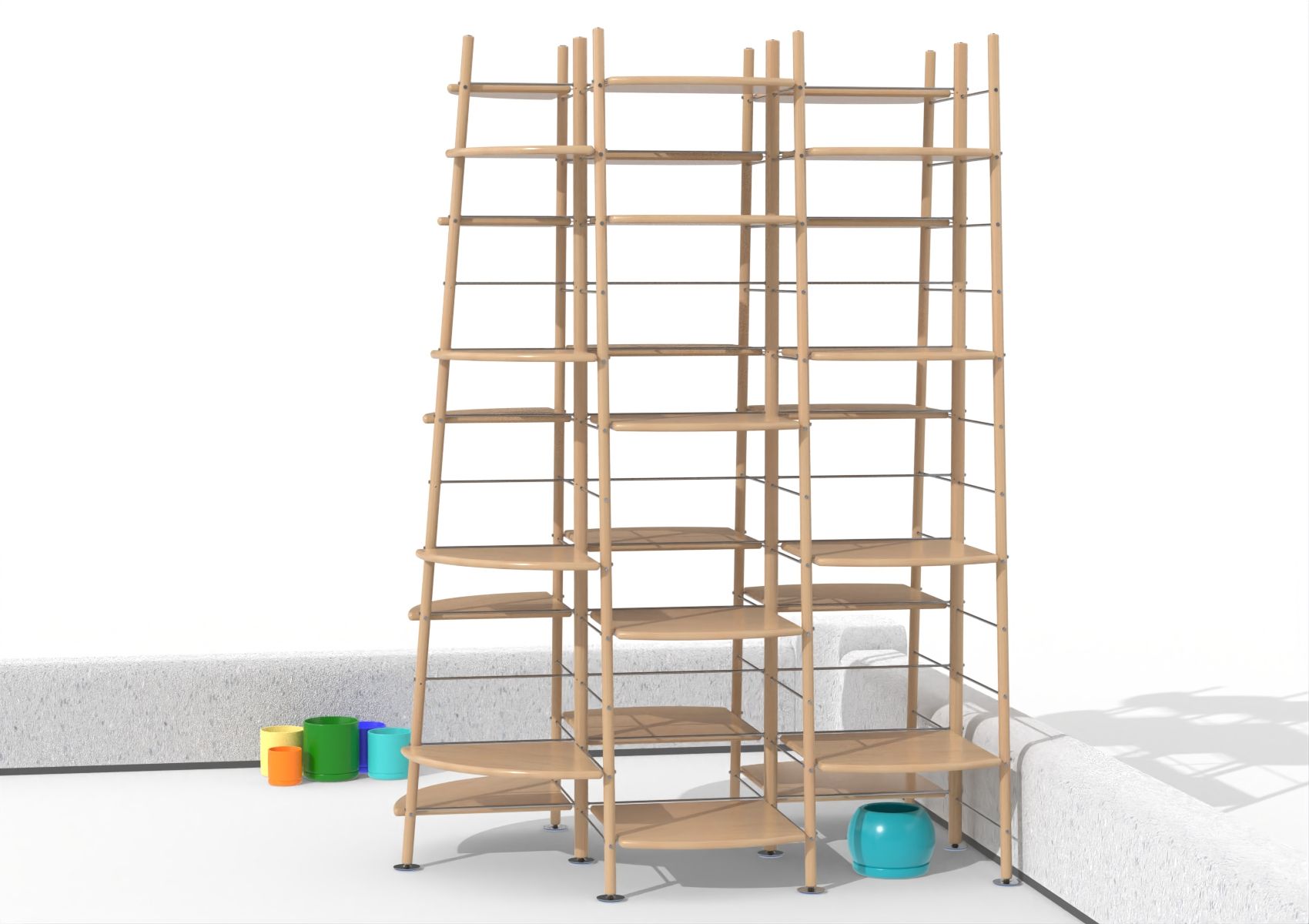

M08.

Model specification: M08.4.15

Height: 190 cm | Foot print: L136 cm x W87 cm

T-section(s): 2 | T-shelves: 9

R-section(s): 4 | R-shelves: 18

Rails: 3 | Legs: 7

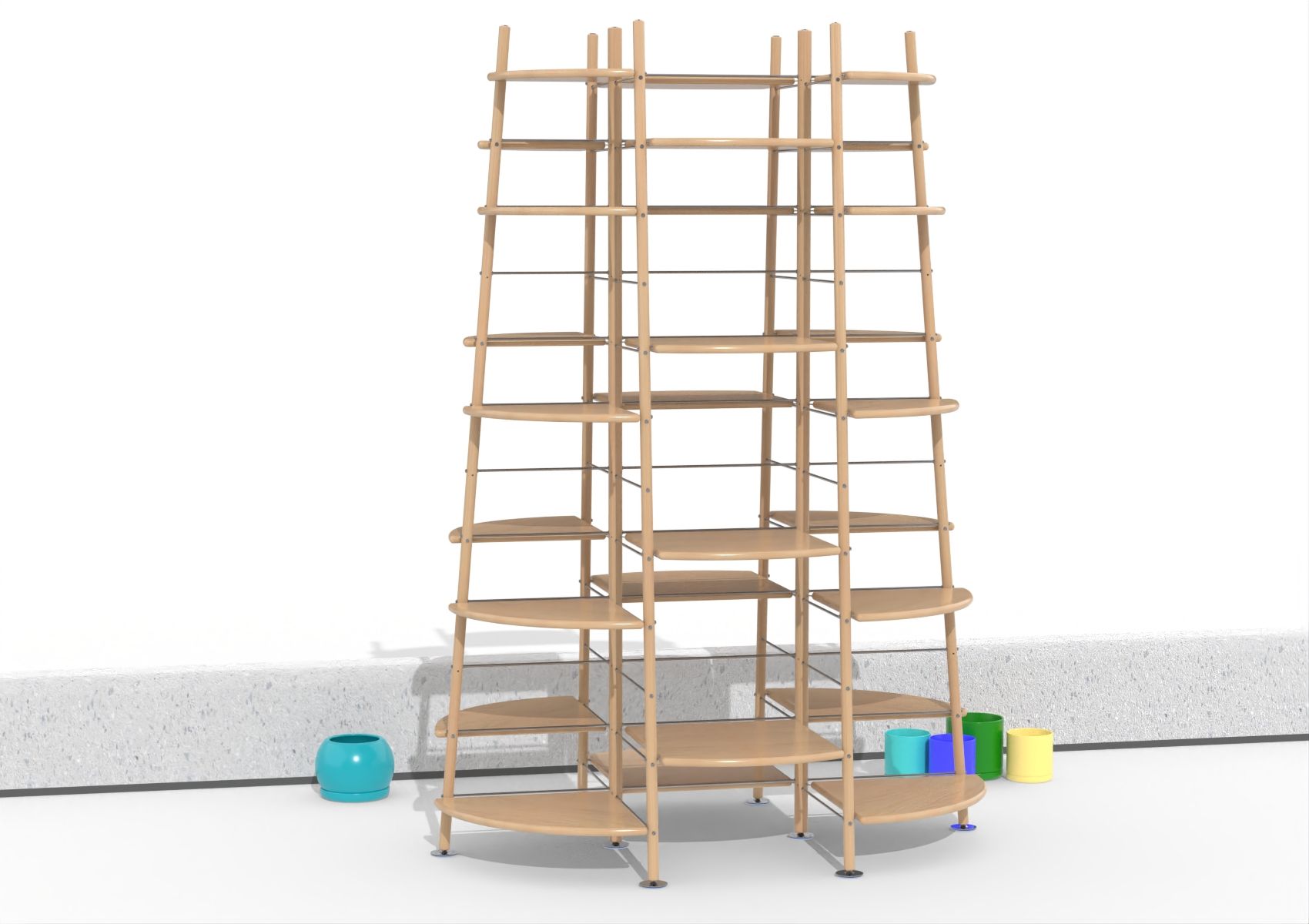

M09.

Model specification: M09.4.15

Height: 190 cm | Foot print: L132 cm x W87 cm

T-section(s): 4 | T-shelves: 18

R-section(s): 2 | R-shelves: 9

Rails: 2 | Legs: 6

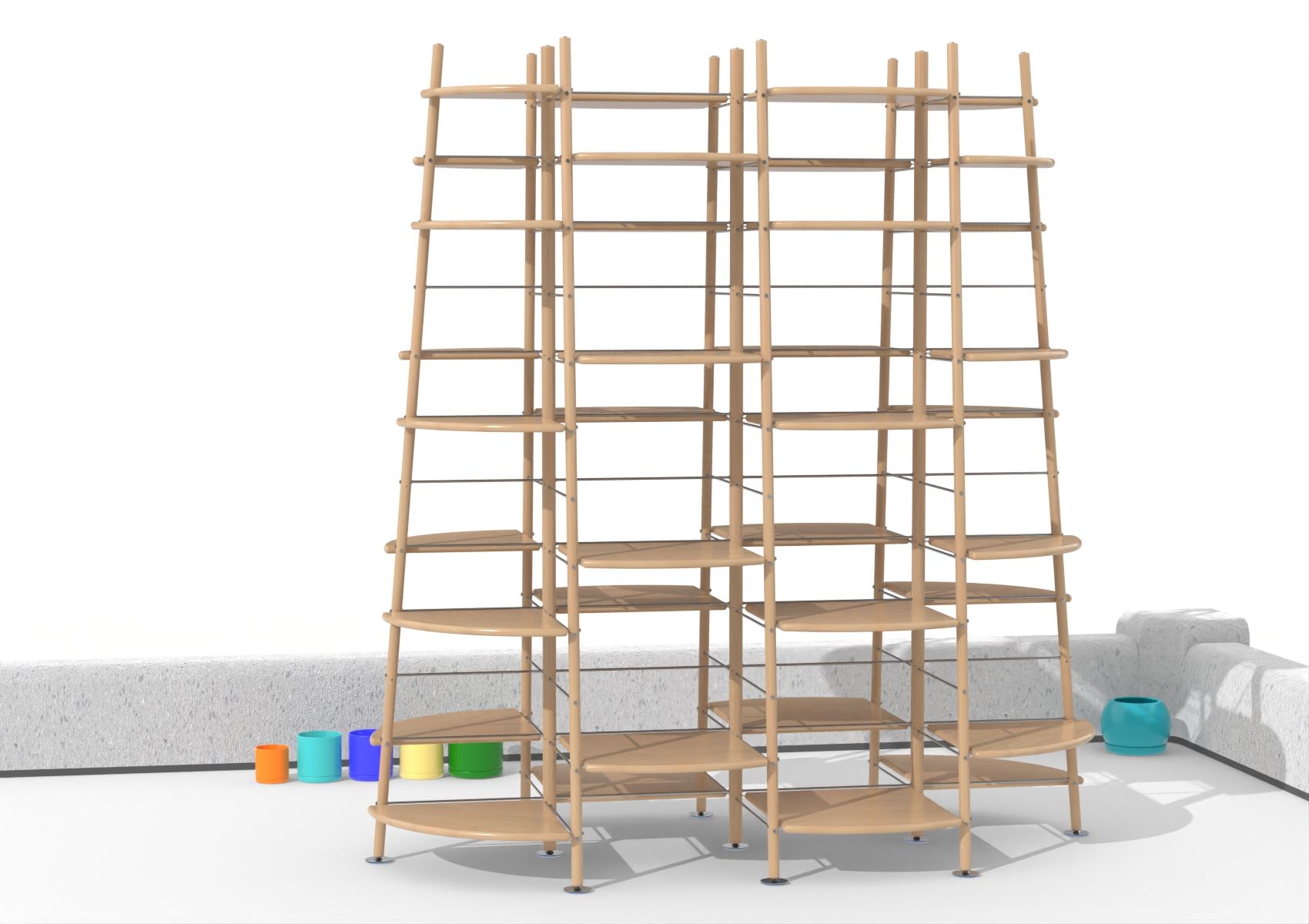

M10.

Model specification: M10.4.15

Height: 190 cm | Foot print: L177 cm x W87 cm

T-section(s): 4 | T-shelves: 18

R-section(s): 4 | R-shelves: 18

Rails: 3 | Legs: 8

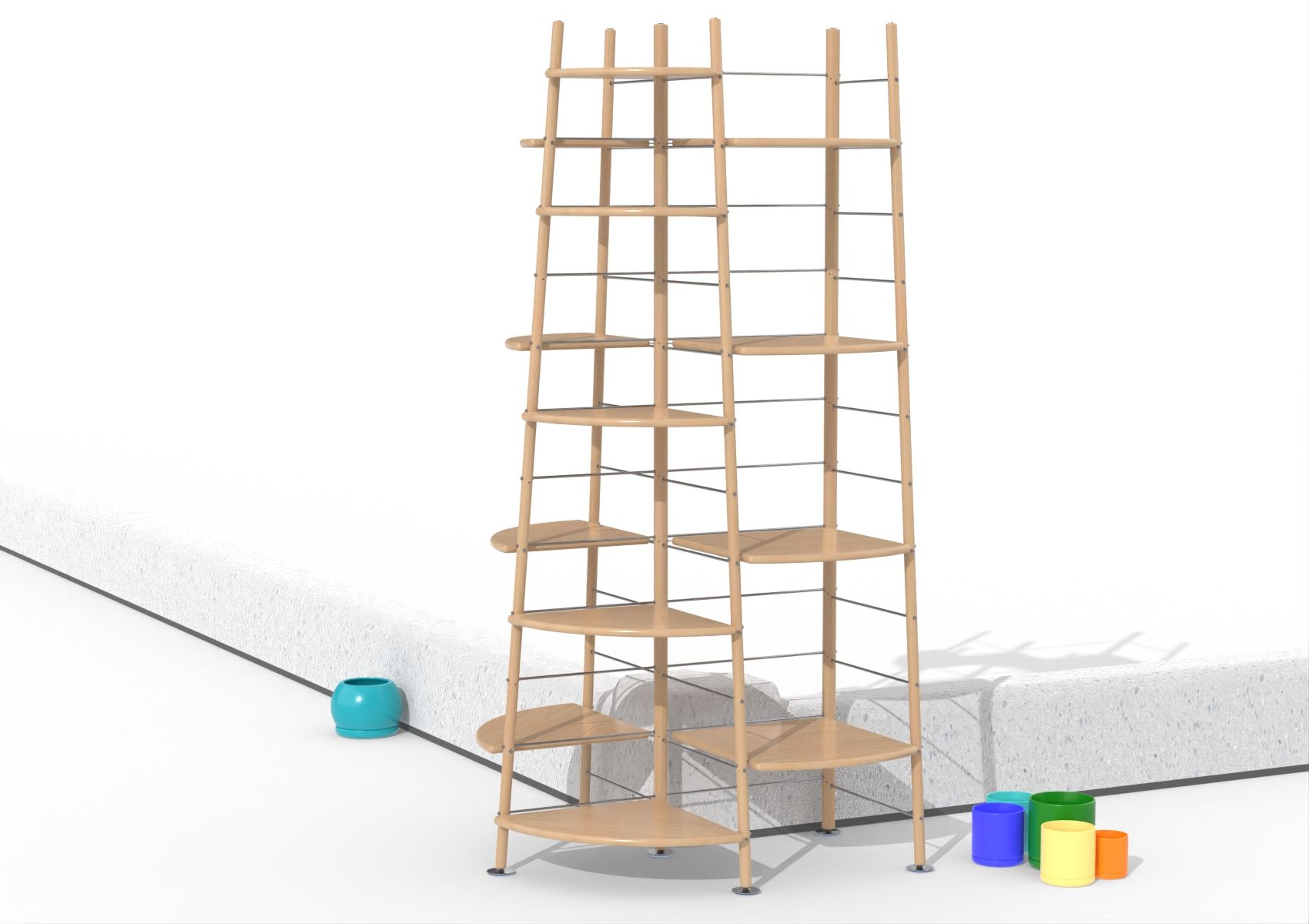

M11.

Model specification: M11.4.15

Height: 190 cm | Foot print: L91 cm x W87 cm

T-section(s): 2 | T-shelves: 9

R-section(s): 1 | R-shelves: 4

Rails: 2 | Legs: 4

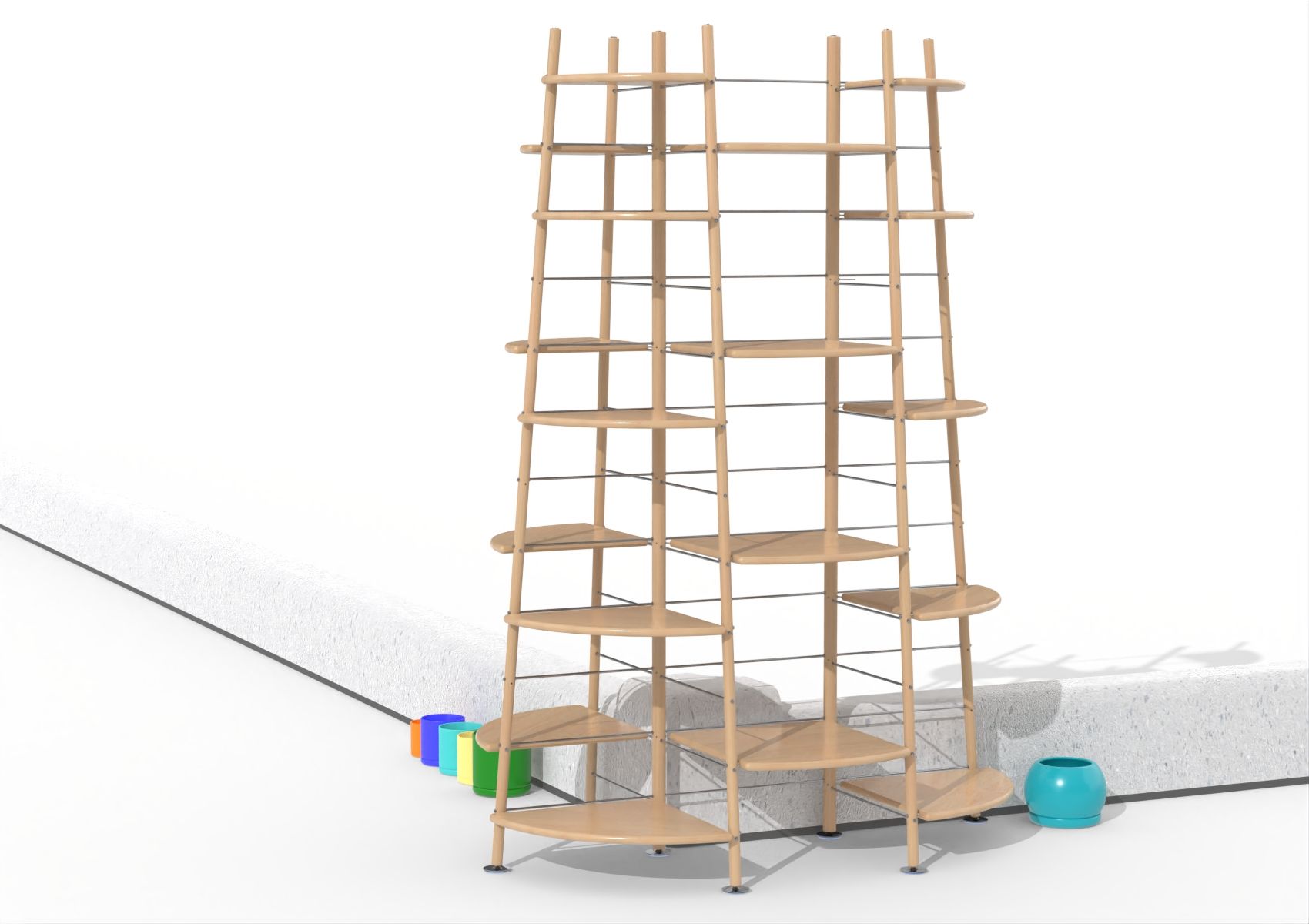

M12.

Model specification: M12.4.15

Height: 190 cm | Foot print: L132 cm x W87 cm

T-section(s): 3 | T-shelves: 14

R-section(s): 1 | R-shelves: 4

Rails: 2 | Legs: 5

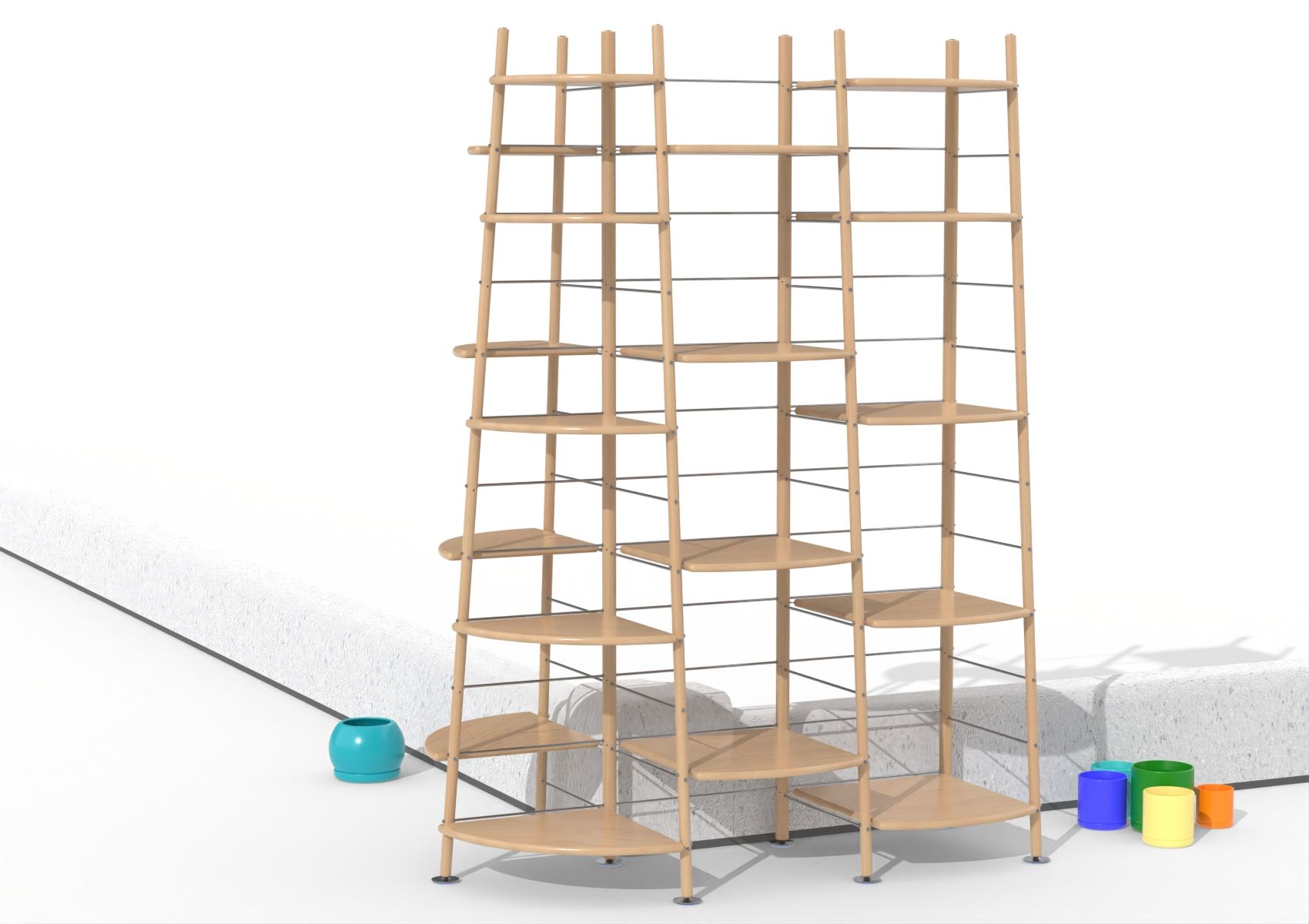

M13.

Model specification: M13.4.15

Height: 190 cm | Foot print: L136 cm x W87 cm

T-section(s): 2 | T-shelves: 9

R-section(s): 2 | R-shelves: 9

Rails: 3 | Legs: 5

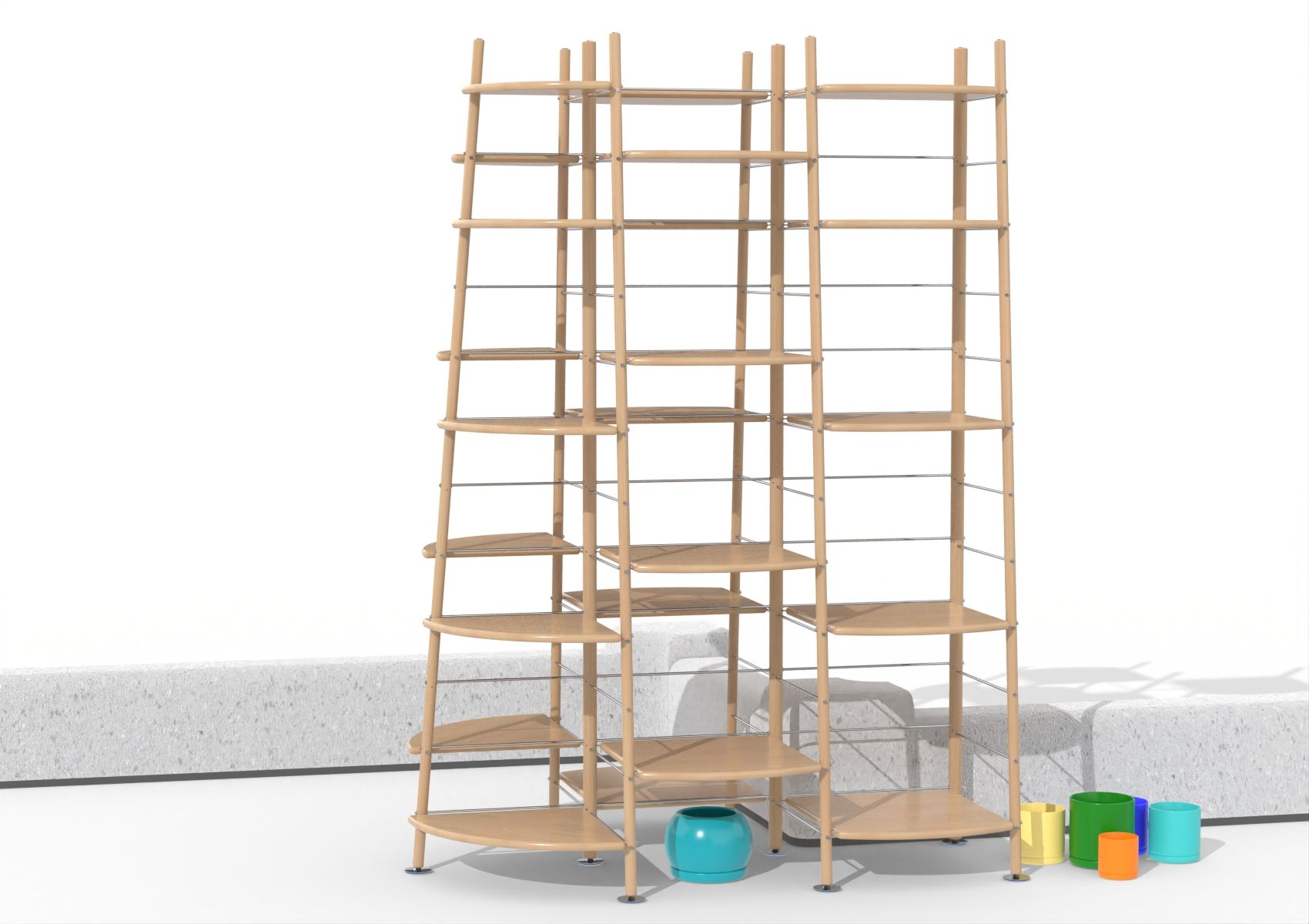

M14.

Model specification: M14.4.15

Height: 190 cm | Foot print: L136 cm x W87 cm

T-section(s): 2 | T-shelves: 9

R-section(s): 3 | R-shelves: 14

Rails: 3 | Legs: 6

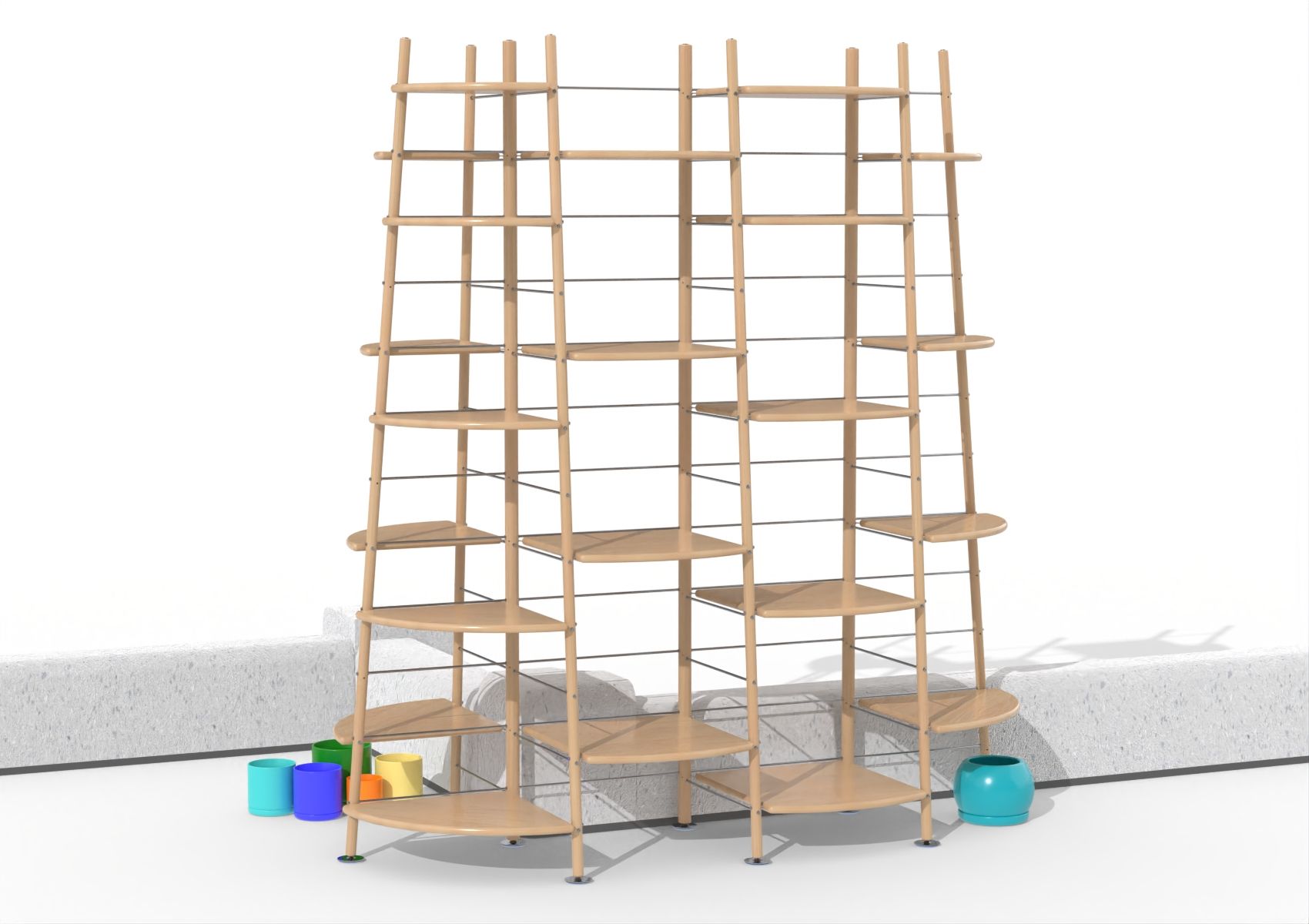

M15.

Model specification: M15.4.15

Height: 190 cm | Foot print: L172 cm x W87 cm

T-section(s): 3 | T-shelves: 13

R-section(s): 2 | R-shelves: 9

Rails: 3 | Legs: 6

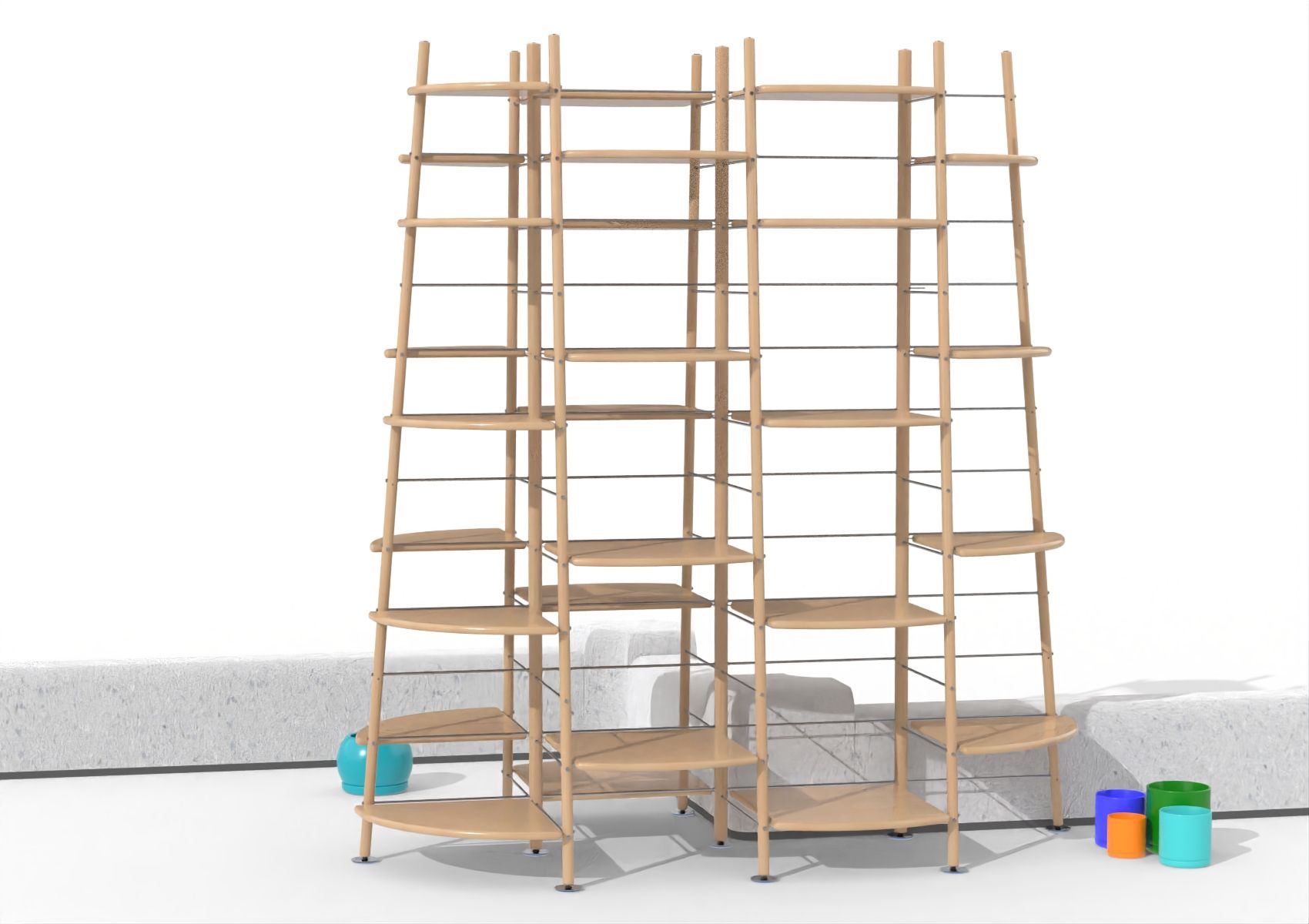

M16.

Model specification: M16.4.15

Height: 190 cm | Foot print: L177 cm x W87 cm

T-section(s): 3 | T-shelves: 13

R-section(s): 3 | R-shelves: 14

Rails: 3 | Legs: 7

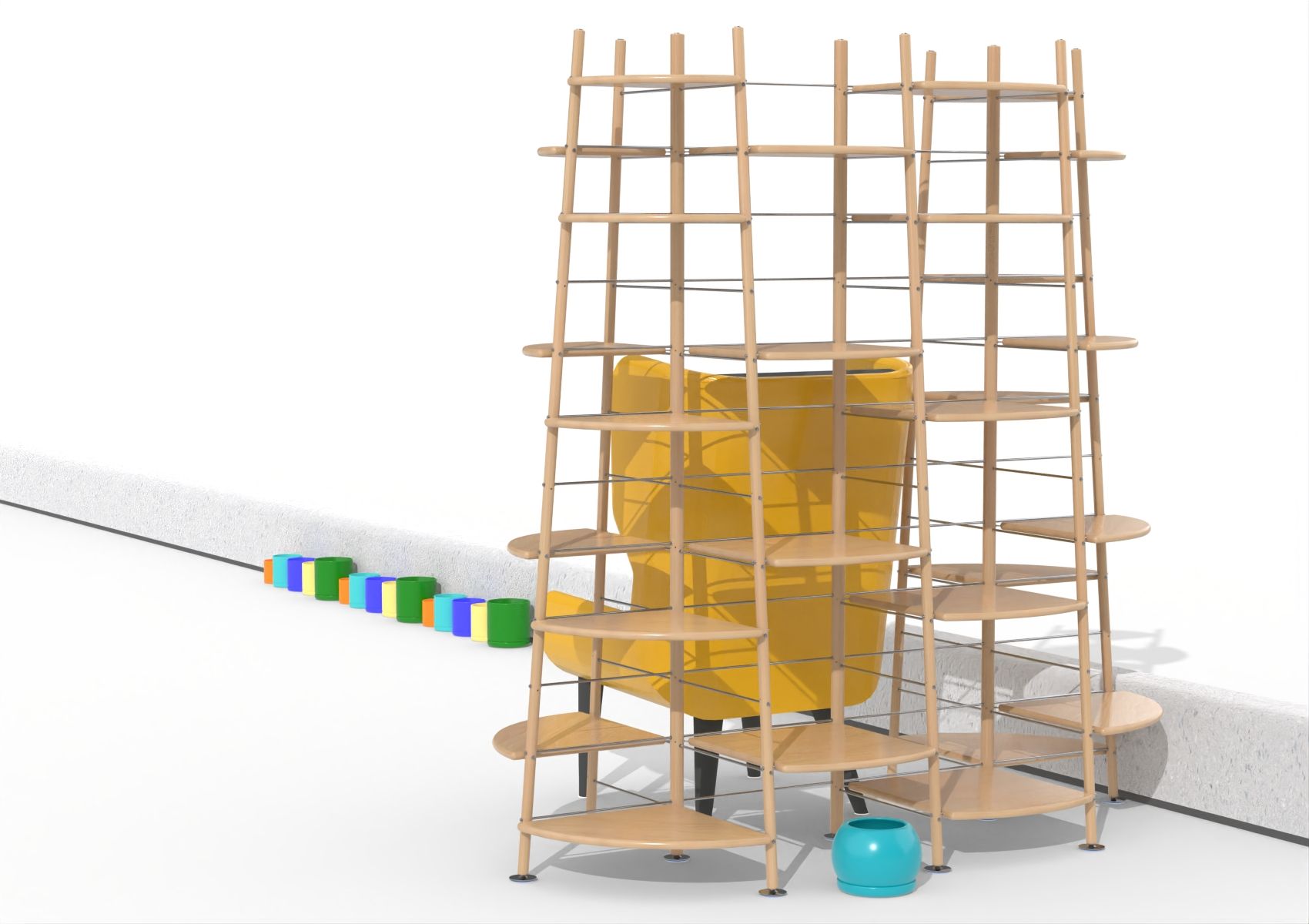

M17.

Model specification: M17.4.15

Height: 190 cm | Foot print: L177 cm x W87 cm

T-section(s): 4 | T-shelves: 18

R-section(s): 2 | R-shelves: 9

Rails: 3 | Legs: 7

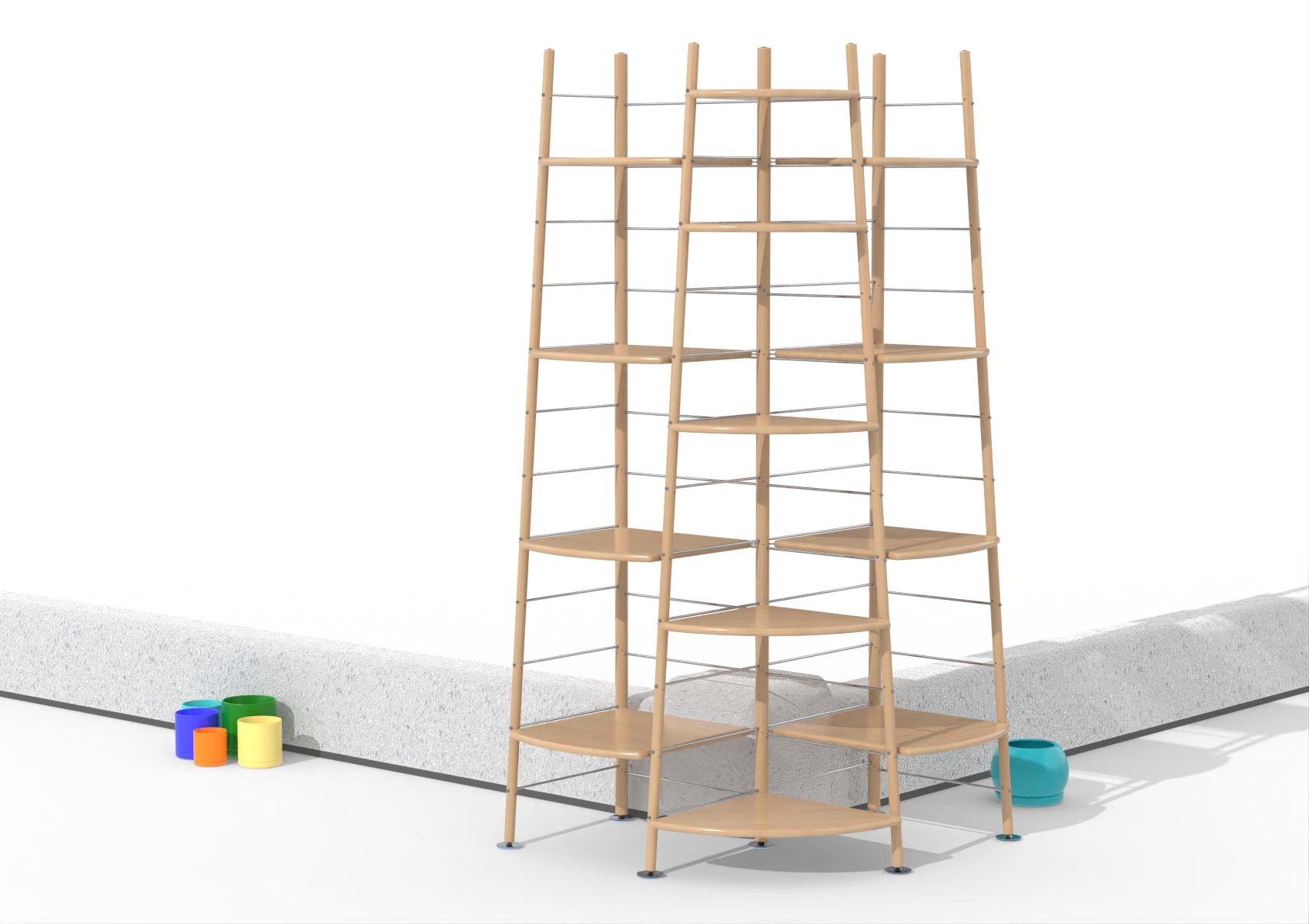

M18.

Model specification: M18.4.15

Height: 190 cm | Foot print: L91 cm x W91 cm

T-section(s): 1 | T-shelves: 5

R-section(s): 2 | R-shelves: 9

Rails: 3 | Legs: 4

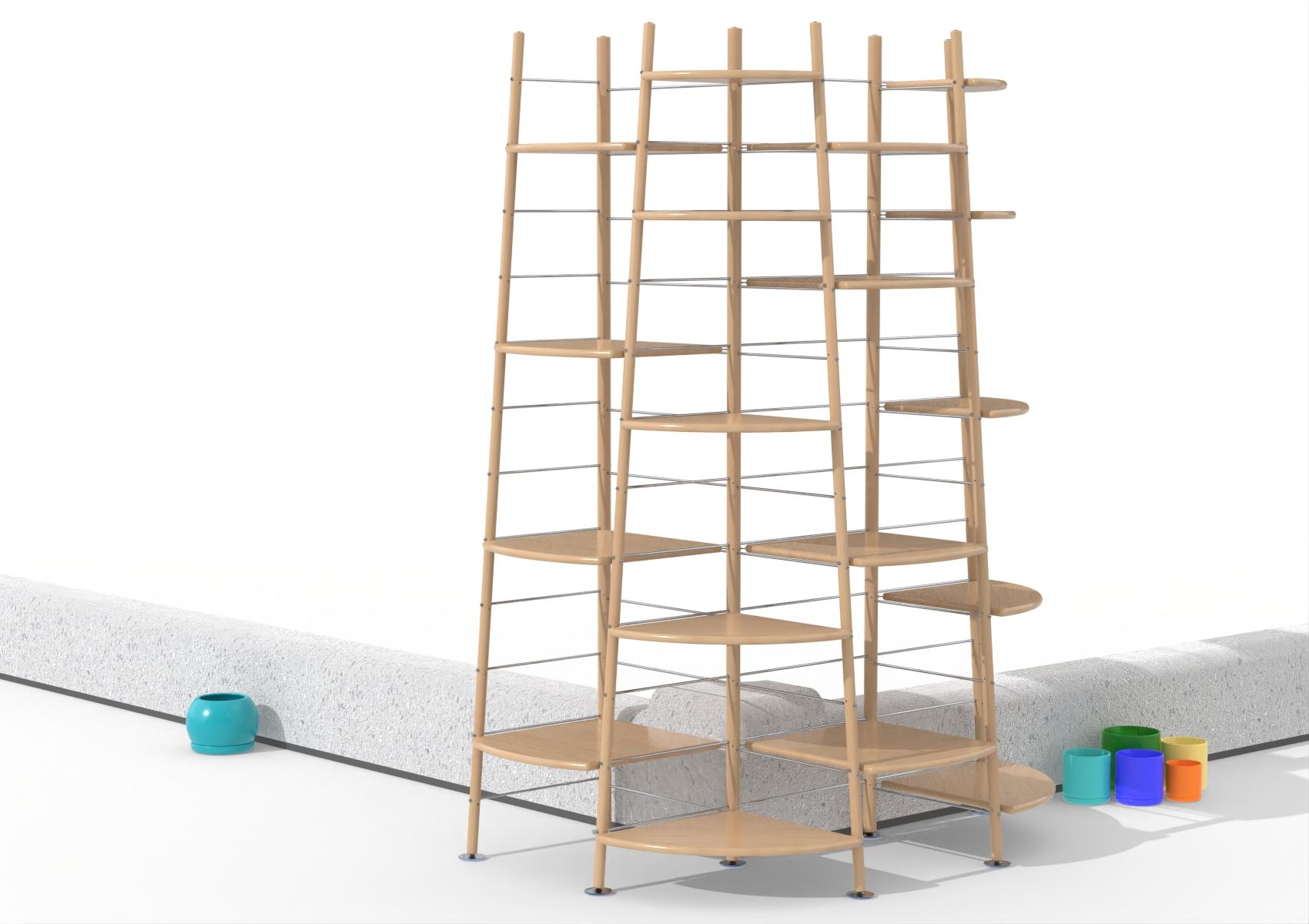

M19.

Model specification: M19.4.15

Height: 190 cm | Foot print: L132 cm x W91 cm

T-section(s): 2 | T-shelves: 10

R-section(s): 2 | R-shelves: 8

Rails: 3 | Legs: 5

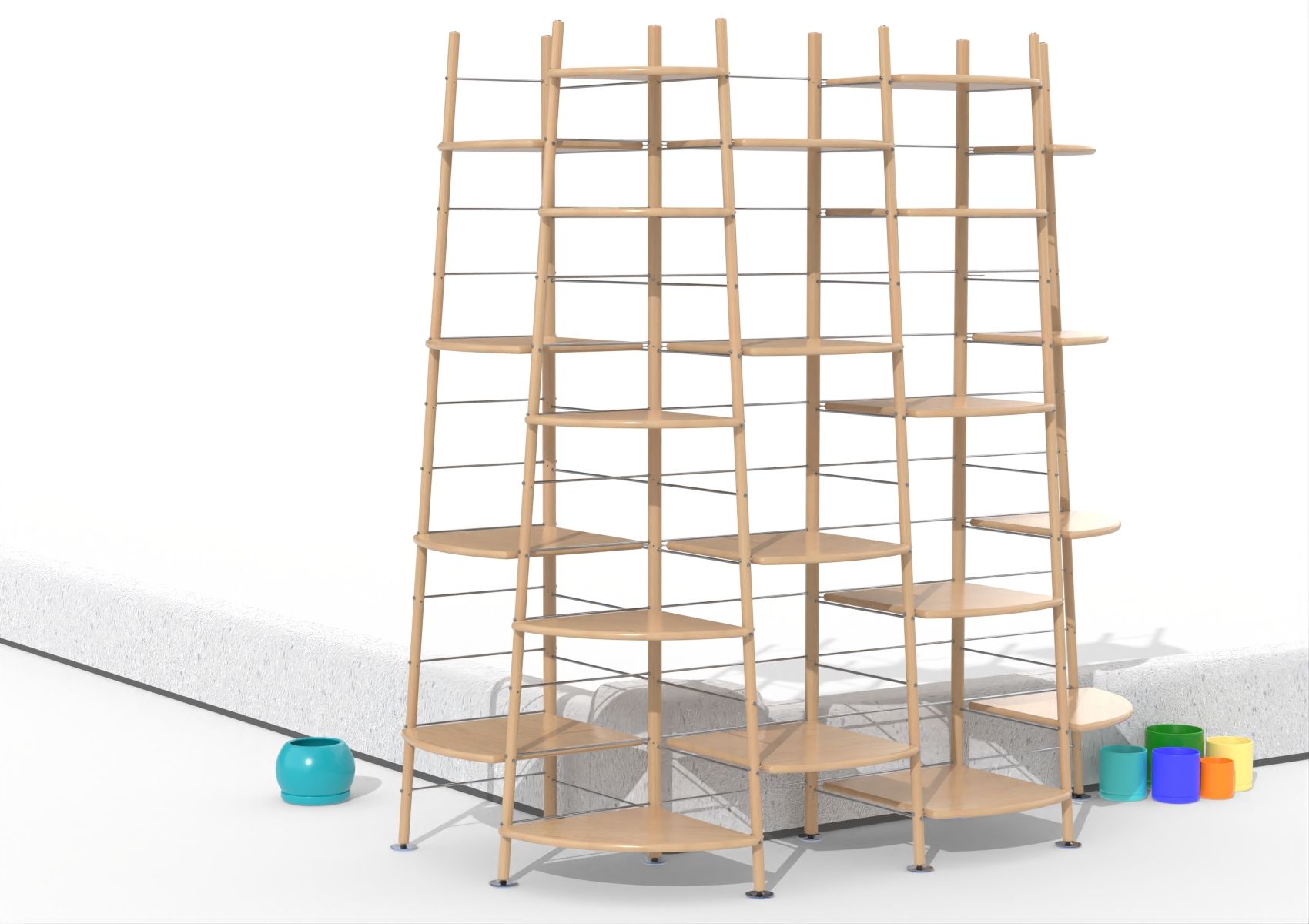

M20.

Model specification: M20.4.15

Height: 190 cm | Foot print: L177 cm x W91 cm

T-section(s): 2 | T-shelves: 9

R-section(s): 3 | R-shelves: 13

Rails: 4 | Legs: 6

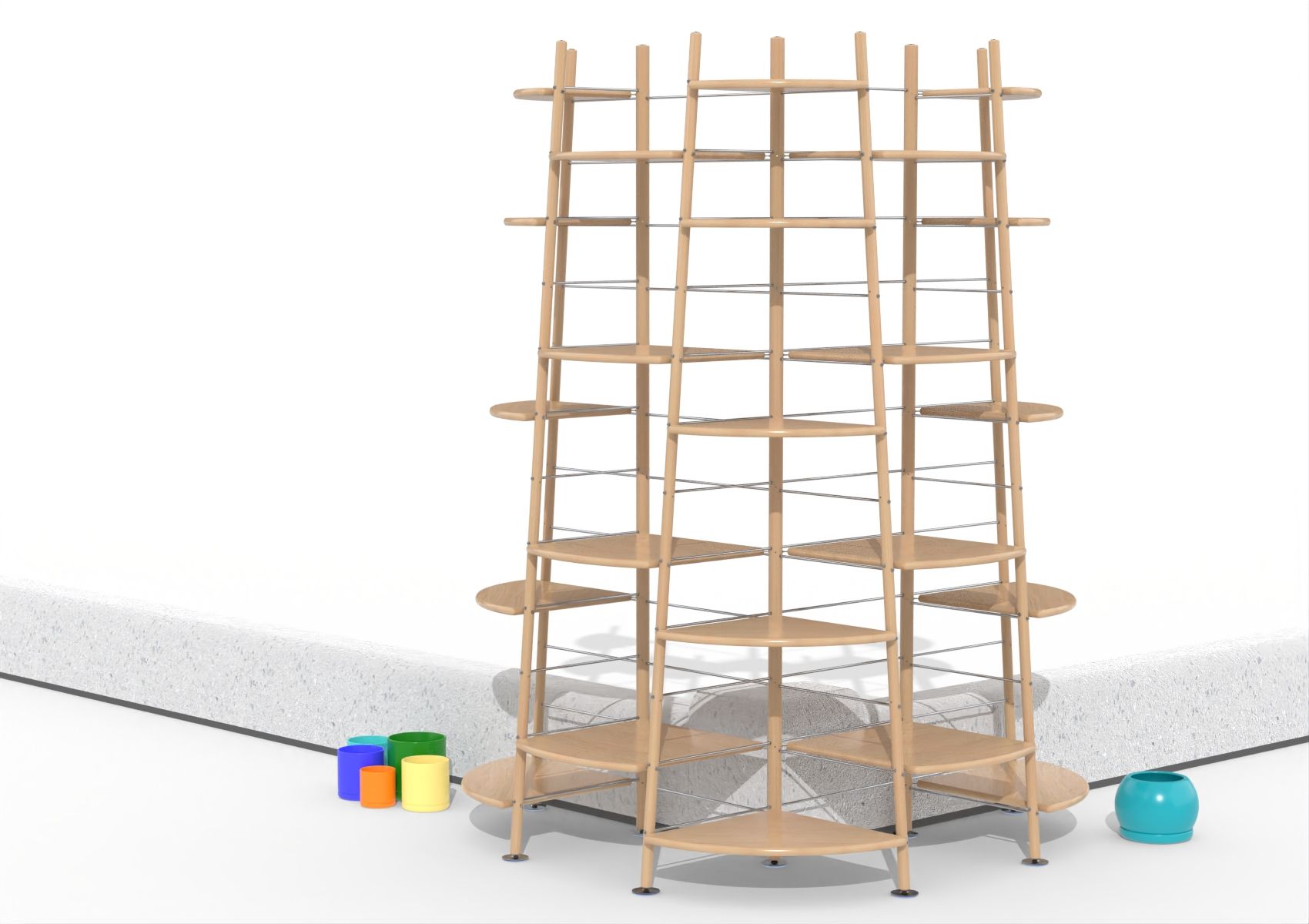

M21.

Model specification: M21.4.15

Height: 190 cm | Foot print: L132 cm x W132 cm

T-section(s): 3 | T-shelves: 15

R-section(s): 2 | R-shelves: 8

Rails: 3 | Legs: 6

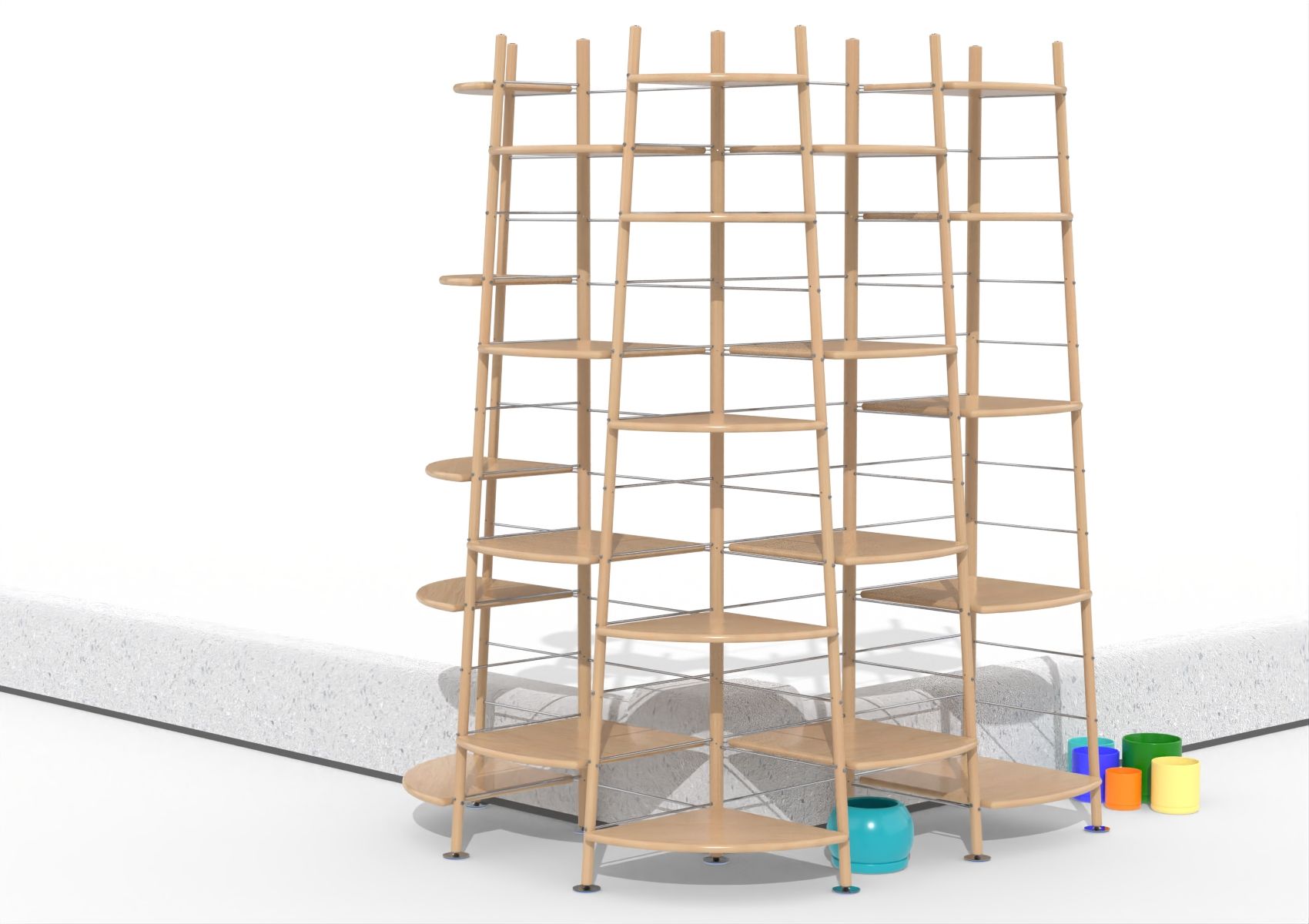

M22.

Model specification: M22.4.15

Height: 190 cm | Foot print: L136 cm x W132 cm

T-section(s): 2 | T-shelves: 10

R-section(s): 3 | R-shelves: 13

Rails: 4 | Legs: 6

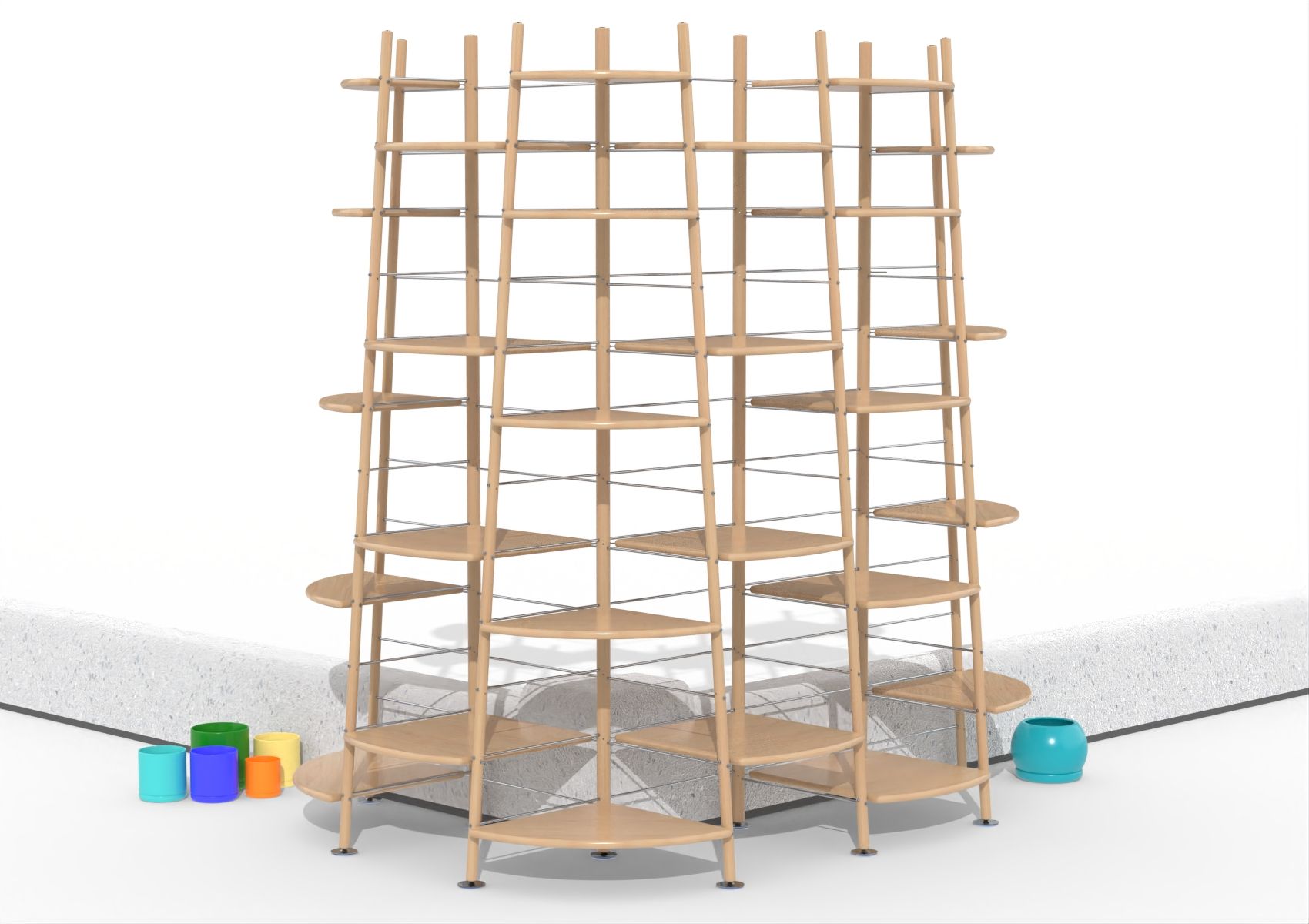

M23.

Model specification: M23.4.15

Height: 190 cm | Foot print: L177 cm x W132 cm

T-section(s): 3 | T-shelves: 14

R-section(s): 3 | R-shelves: 13

Rails: 4 | Legs: 7

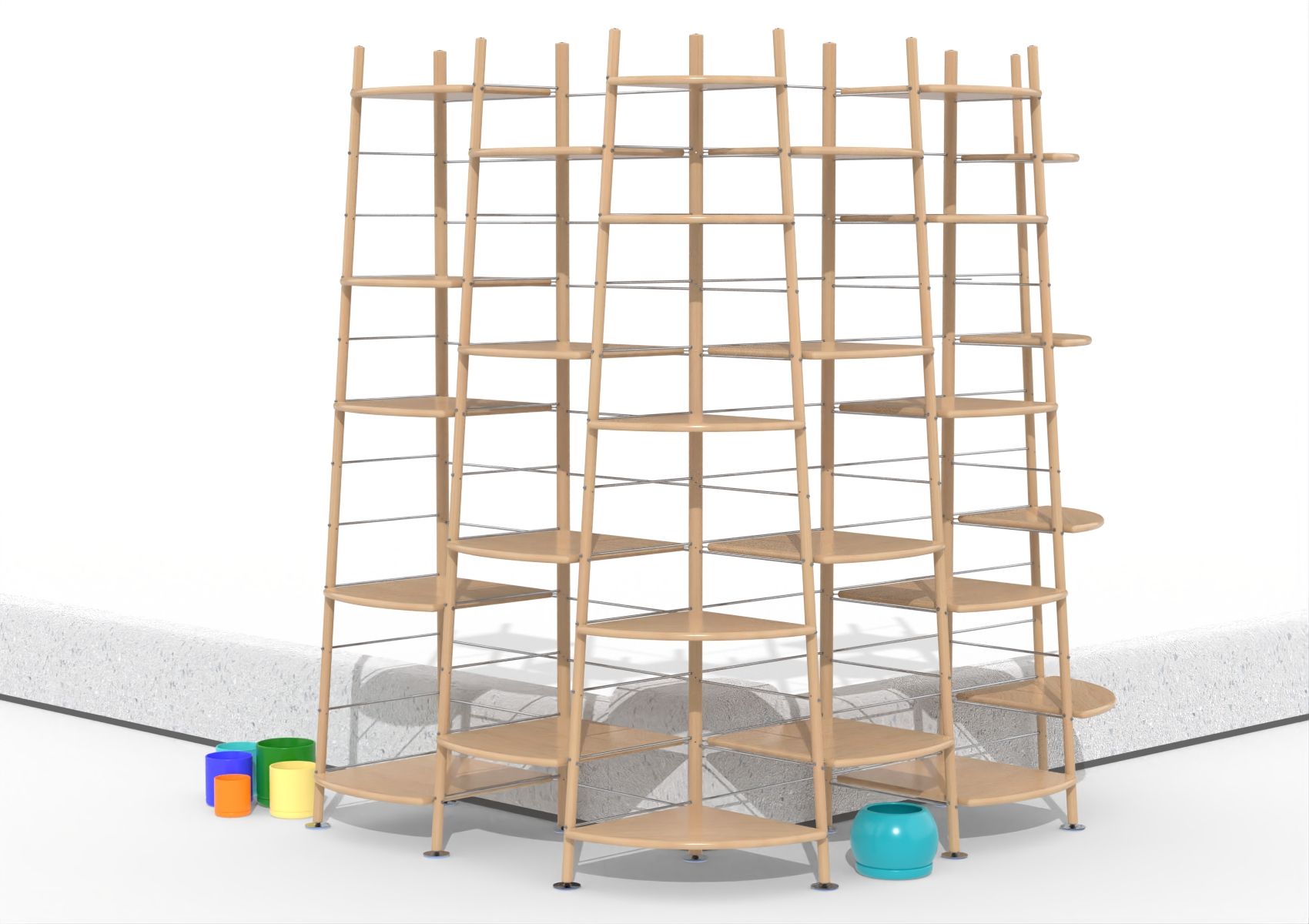

M24.

Model specification: M24.4.15

Height: 190 cm | Foot print: L177 cm x W136 cm

T-section(s): 2 | T-shelves: 9

R-section(s): 4 | R-shelves: 18

Rails: 5 | Legs: 7

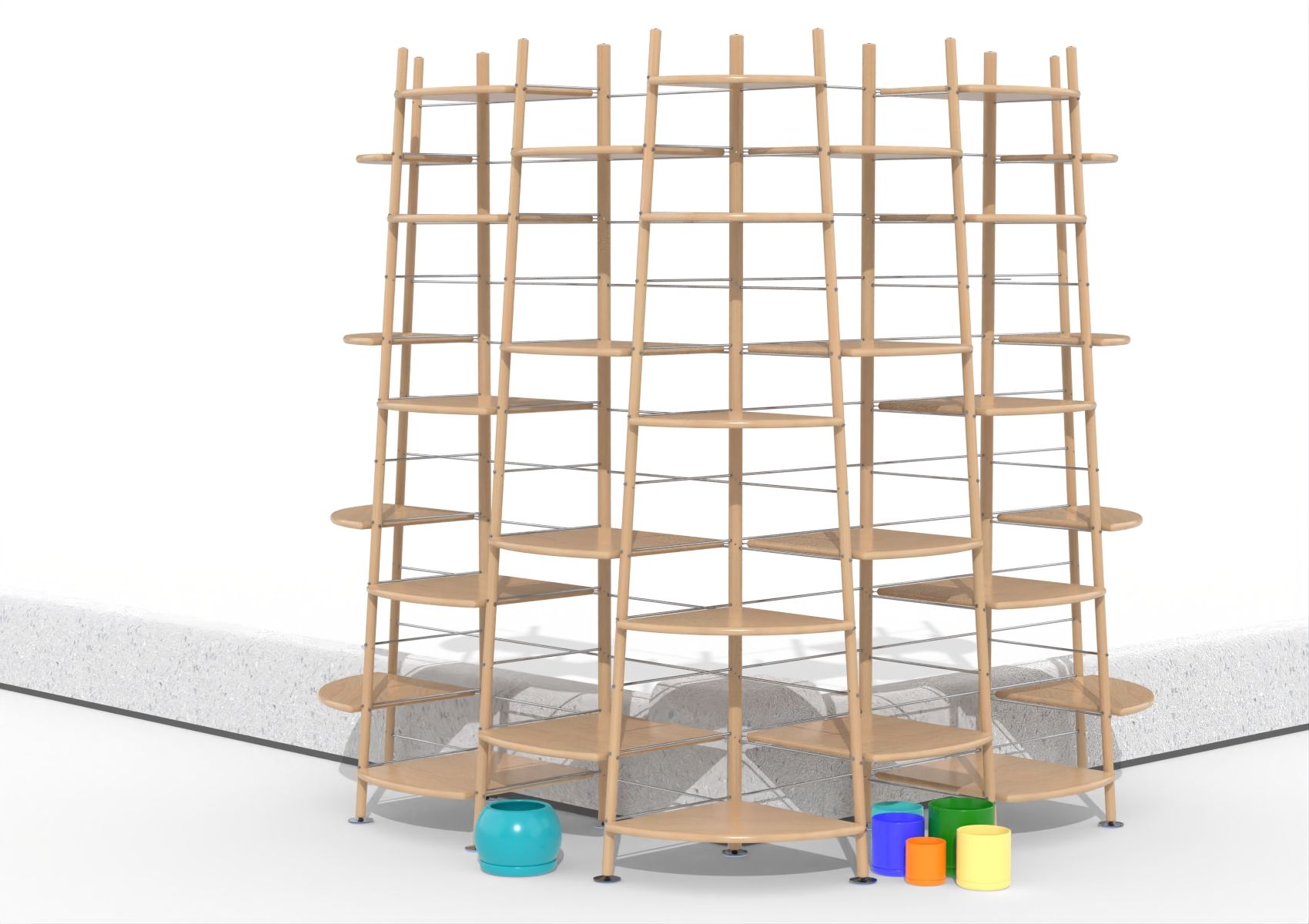

M25.

Model specification: M25.4.15

Height: 190 cm | Foot print: L177 cm x W177 cm

T-section(s): 3 | T-shelves: 13

R-section(s): 4 | R-shelves: 18

Rails: 5 | Legs: 8

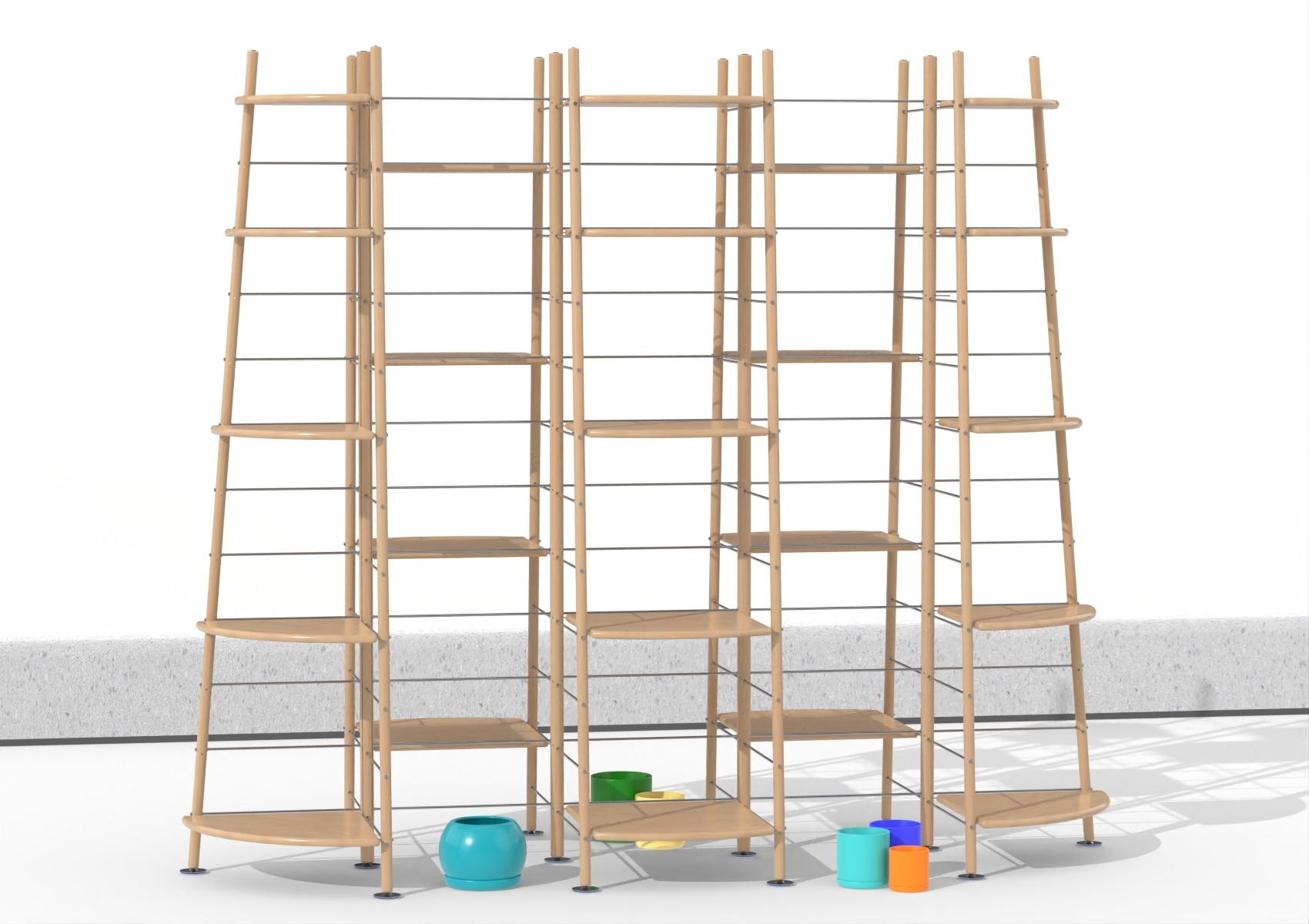

M26.

Model specification: M26.4.15

Height: 190 cm | Foot print: L222 cm x W87 cm

T-section(s): 2 | T-shelves: 10

R-section(s): 3 | R-shelves: 13

Rails: 5 | Legs: 10

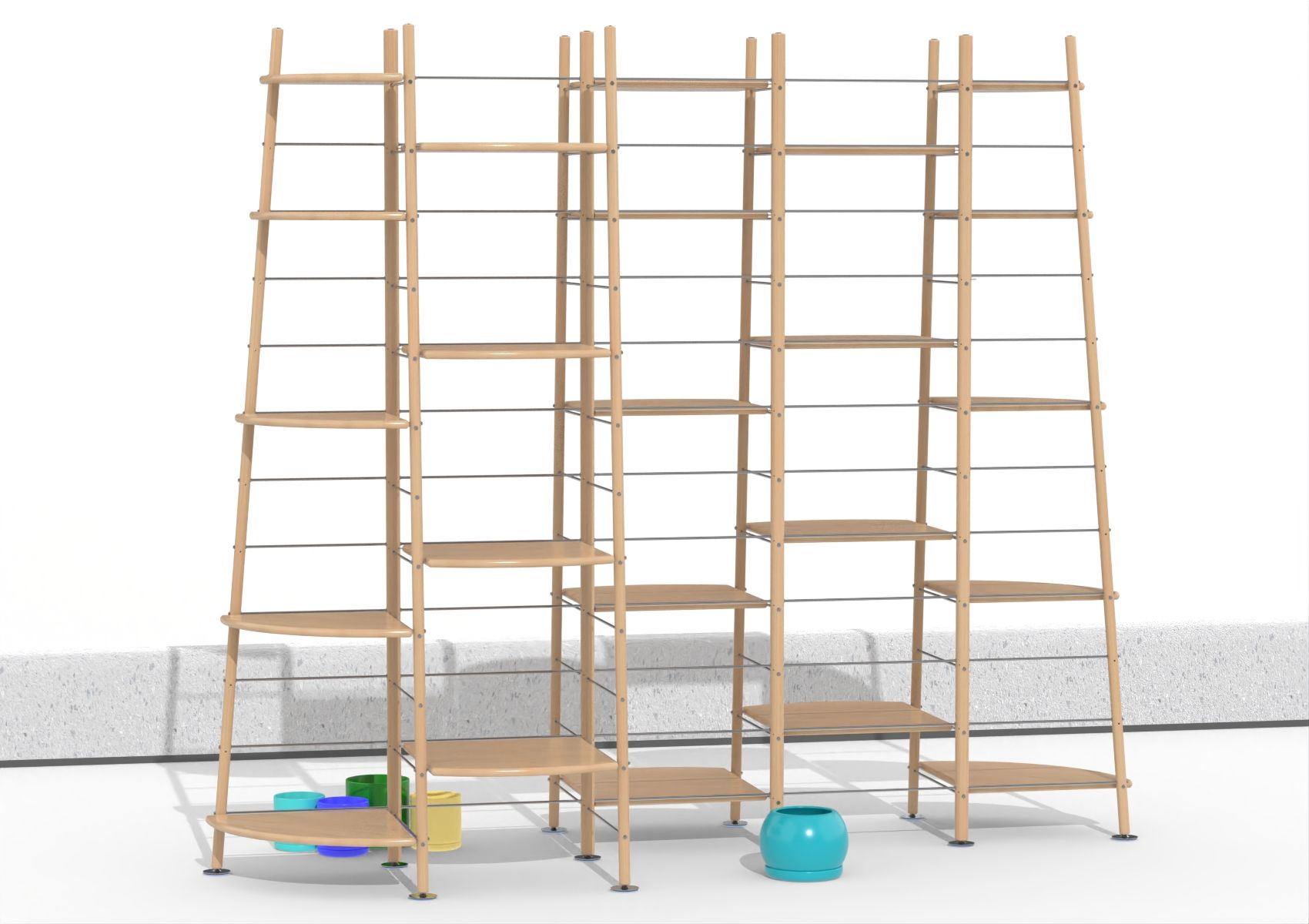

M27.

Model specification: M27.4.15

Height: 190 cm | Foot print: L222 cm x W87 cm

T-section(s): 2 | T-shelves: 10

R-section(s): 3 | R-shelves: 13

Rails: 4 | Legs: 7
